Brief introduction

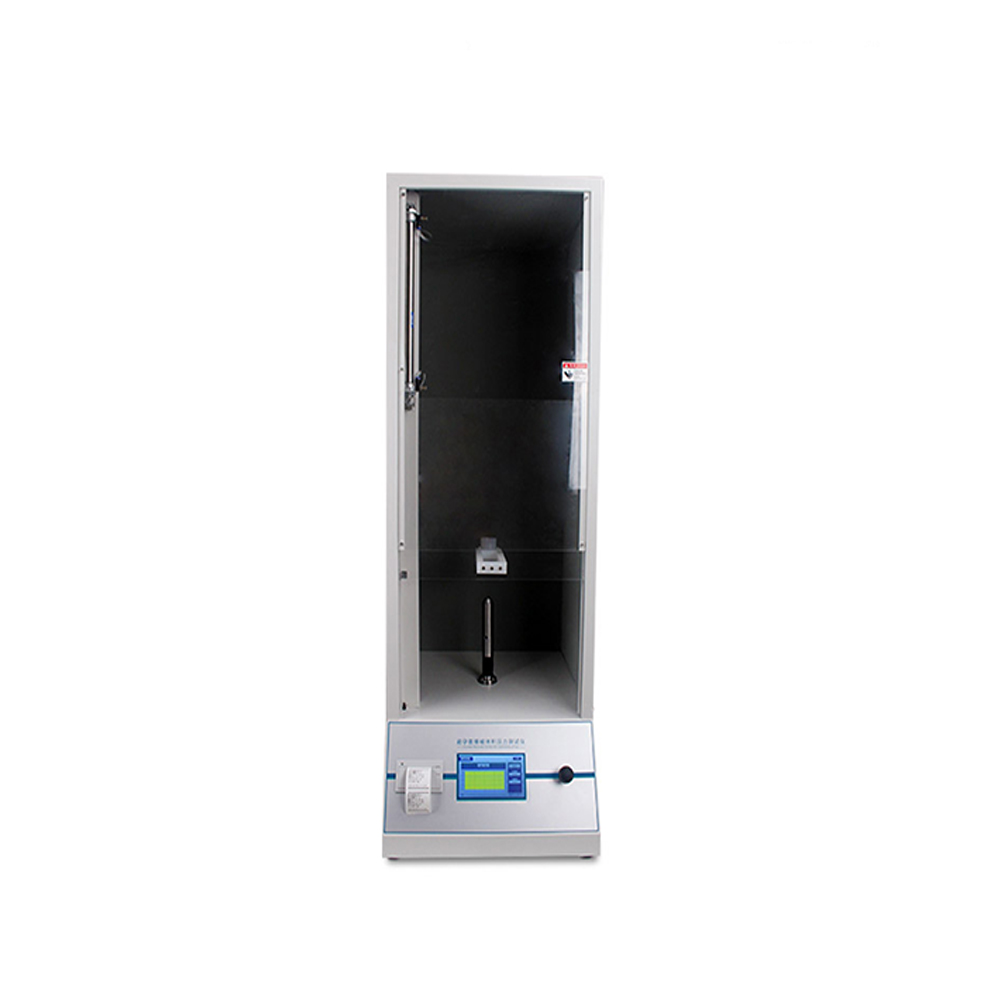

The condom automatic burst tester (one chamber) meets the production standard of ISO 4074. For the convenience of operation, through the manual interface operation, the instrument can not only automatically and accurately detect, automatically display, automatically record the pressure value, volume value and use time in the process of inflation test and the instant of condom explosion, but also provide the function of automatically printing test results.
Specialized Technology
1. is compatible with positive pressure design principle, simple operation, stable and reliable performance;
2. test range optional test range wide, wide application areas
3. gas expansion axis clamping economic efficiency is extremely convenient and fast;
4. burst inflatable volume, burst pressure determination, inflatable instantaneous flow adjustable;
5. test process “a key” operation, intelligent, high test efficiency;

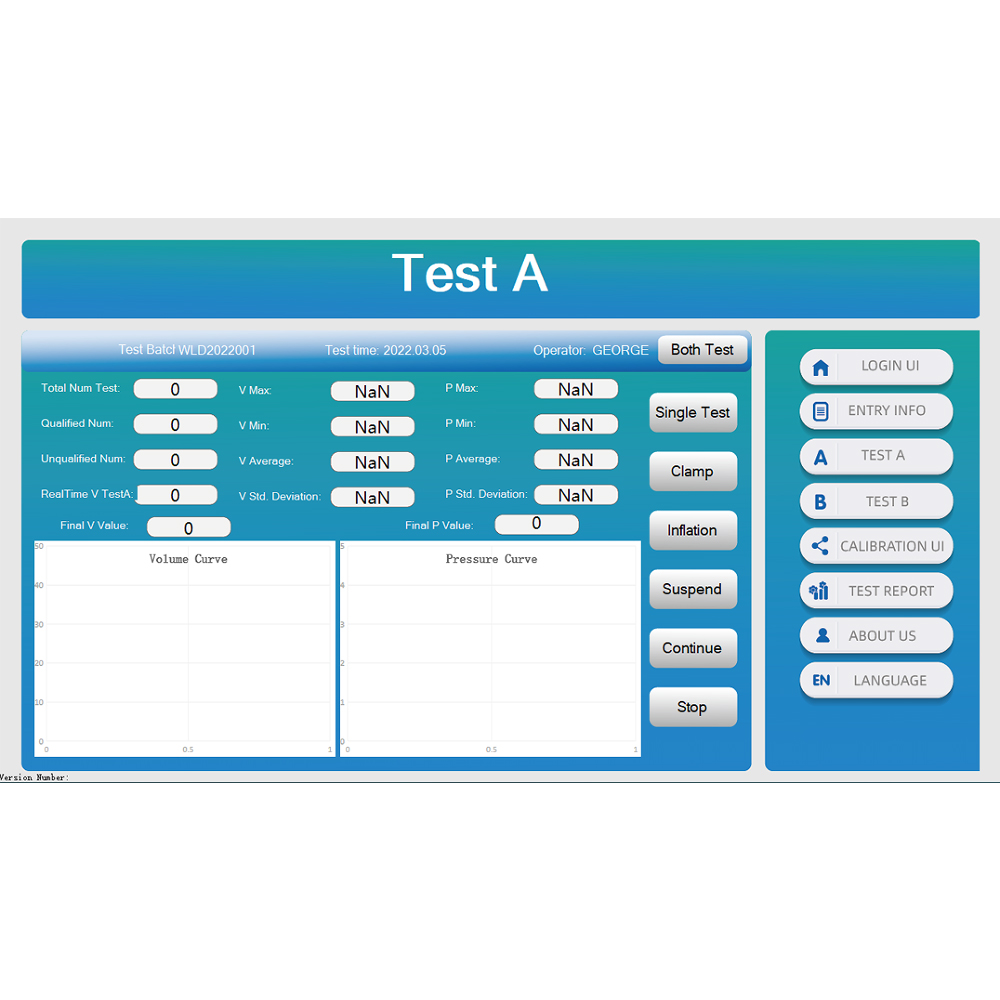

6. test data high-definition large-screen LCD display, the results of automatic statistics, printing Test accessory support, flexible test mode, compatible with a variety of.
Test principle
Put the condom on the blowing rod and fix it on the fixing device. Inflate the condom at the inflation rate of (0.4~0.5)dm³/s or (24~30)dm³/min, the condom expands until it bursts, and the screen automatically records the bursting pressure and the inflated volume; if the condom doesn’t leak, measure and record the bursting volume and pressure. The burst volume is expressed in cubic decimeter, rounded to 0.5dm³; the burst pressure is expressed in kPa, rounded to 0.05kpa.
Test Standards
The instrument complies with many national and international standards: GB7544-2019/ISO4074/ISO23409/ASTM D6342
Rich Applications
| Basic applications | Suitable for the bursting capacity and bursting pressure volume determination of various condoms/condoms. |
| Applicable to the determination of bursting capacity and bursting pressure volume of various rubber gloves and other products. |
Technical Specification
| Item | PYT-142 Condom Bursting Volume and Pressure Tester |

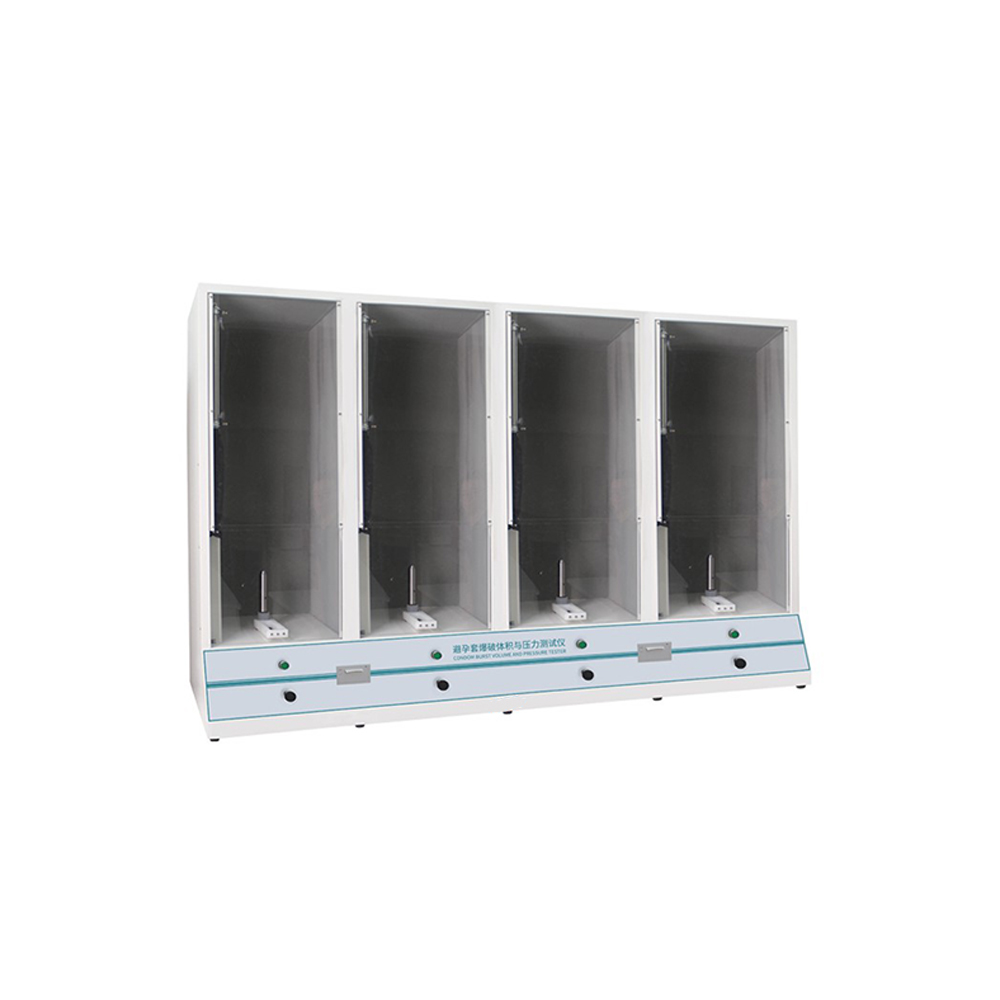

| Testing stations | 4 |
| Pressure range | 0~5.0kPa |
| Pressure accuracy | 0.01kpa |
| Volume range | 0~60dm³ |
| Volume Accuracy | ≤±3% |
| Inflation rate | (24－30) dm³/min或（0.4～0.5）dm³/s |

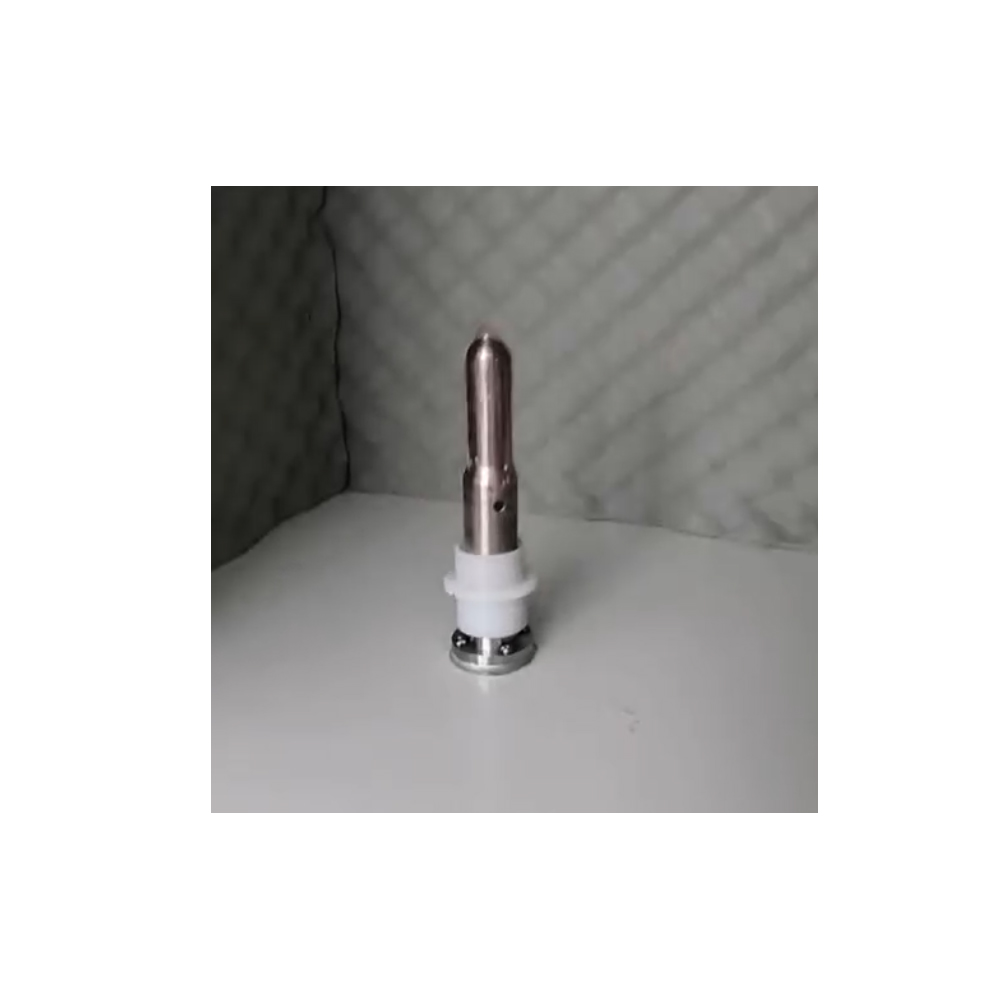

| Length of inflatable rod | 220mm |
| Sphere diameter of inflatable rod tip | 25mm |
| Inner diameter of clamping ring | 40mm |
| Air source pressure | 0.6MPa~1MPa（气源用户自备） |
| Air source interface | Ф6mm聚氨酯管 |
| Dimension | 2000 mm (L)×500mm (W)×1400mm(H) |
| Power supply | AC 220V 50Hz |
| Net weight | 80 kg |
FAQ：
What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.
What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.
What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
