Brief introduction

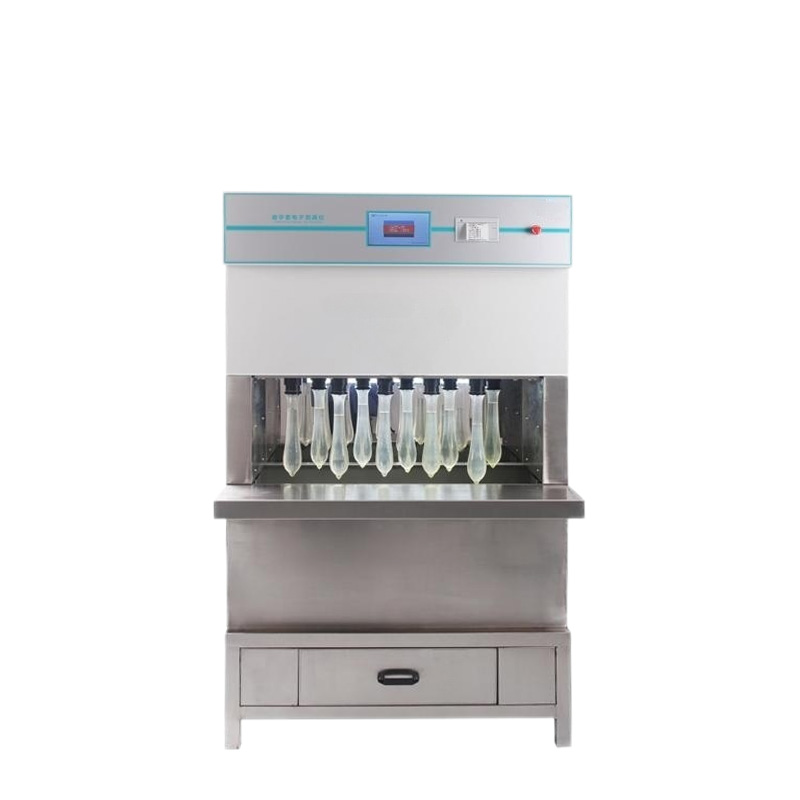

Condom electric water leak tester is a fast and effective equipment. Its design meets the certification requirements of GB7544-2009 appendix l pinhole test, ISO4074:2002 (technical requirements and test methods of natural rubber condoms), iso4074:2015, AFNOR (French Standardization Association), DIN (German Standardization Association), etc.
Professional technology

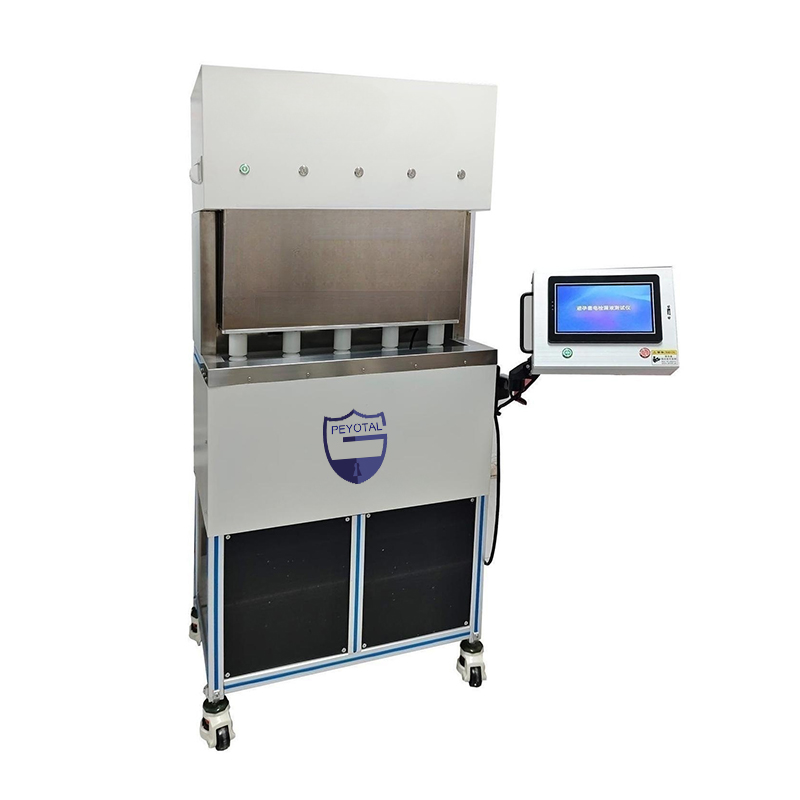

- Ten-inch touch screen, menu-type operation interface, comfortable, safe operation, compact structure, easy to maintain, fast and reliable operation;
- With 10 lifting test heads, the test data is automatically transmitted to the computer;
- Water injection can be adjusted, can meet the various sizes of samples;
- Conform with the ISO4074 conductivity leakage test method.
Test application
| Basic application | Suitable for pinhole electrotest detection of various condoms / condoms. |
| extensive application | Suitable for a variety of rubber gloves and other products of pinhole electroinspection method determination. |
The test principle

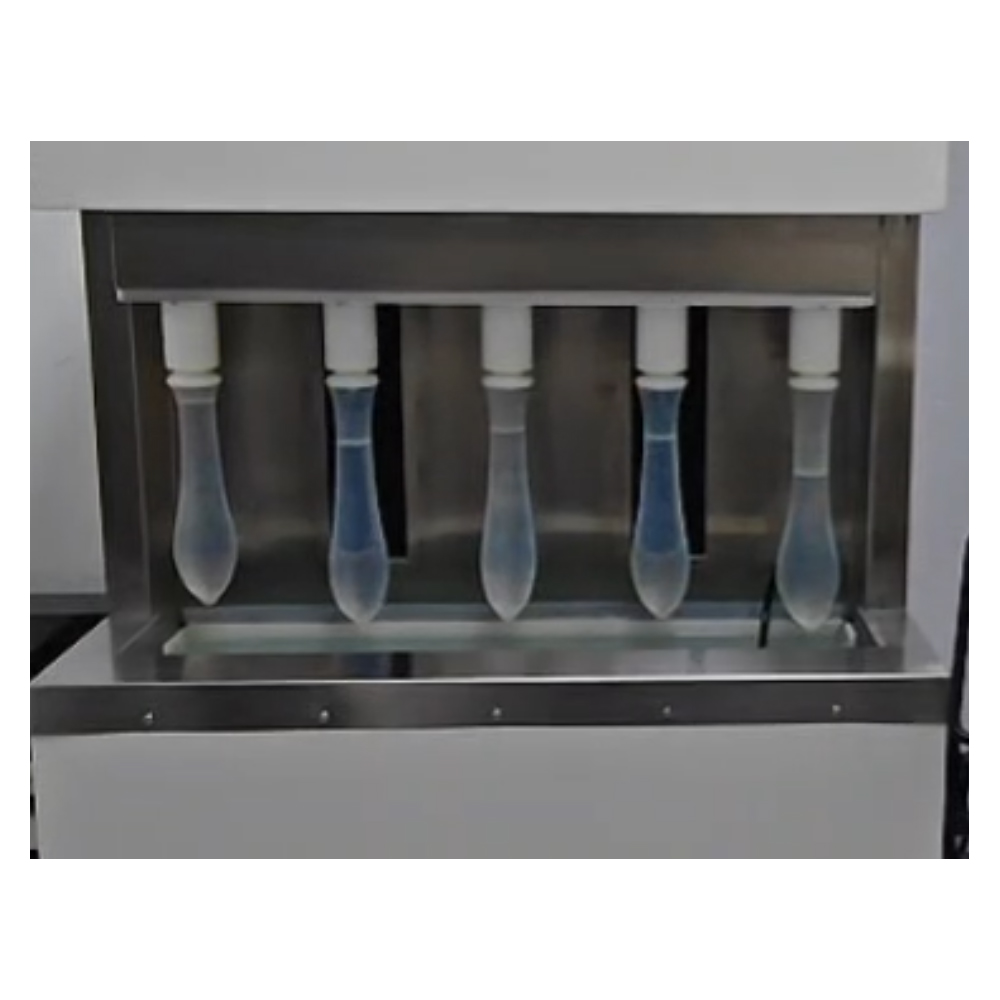

Condoms use electronic shielding to check pinholes. Condoms without pinholes are like insulators, and the current will not form a circuit and flow through the condom, while condoms with pinholes will form a current loop.
Testing standard
The instrument is in accordance with: GB7544-2019 / ISO4074:2002 / ISO4074:2015 / AFNOR / DIN
Qualification
| model
project |
PYT-143A Condom Electric Water Leak Tester |
| Test station | Ten |
| Test water temperature | 0-40℃ |
| Injection volume | 5~1000ml ± 10ml (automatic water injection) |
| volts d.c | （10±0.1）V |
| Voltage meter accuracy | ±0.3mV |
| precision resistance | （10±0.5）kΩ |
| outline dimension | 1000mm(L)×450mm(W)×1600mm(H) |
| weight | 90kg |
Product configuration
| standard layout | Host machine, test head, and test cavity |
FAQ：
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.
What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
