Professional technology
- The domestic system adopts the digital preset test vacuum degree and vacuum holding time to ensure the accuracy of the test data.
- Using the world famous SMC imported pneumatic components, stable and reliable performance.
- Automatic constant pressure replenishment further ensures that the test can be performed under preset vacuum conditions.
- Professional software supports the function of automatic backward blowing unloading and automatic ending test to ensure the smooth progress of the test process.
- The system is controlled by microcomputer, with LCD screen and PVC operation panel for users to quickly test operation and data view.
The test principle
To determine the sealing performance of the specimen by vacuum the vacuum chamber, to observe the expansion of the test shape and the recovery of the specimen shape after the release of the vacuum to determine the sealing performance of the specimen.
Testing standard
The instrument meets a number of national and international standards: GB / T15171, GB / T 7544-2019, and ASTM D3078.
Qualification
| model
project |

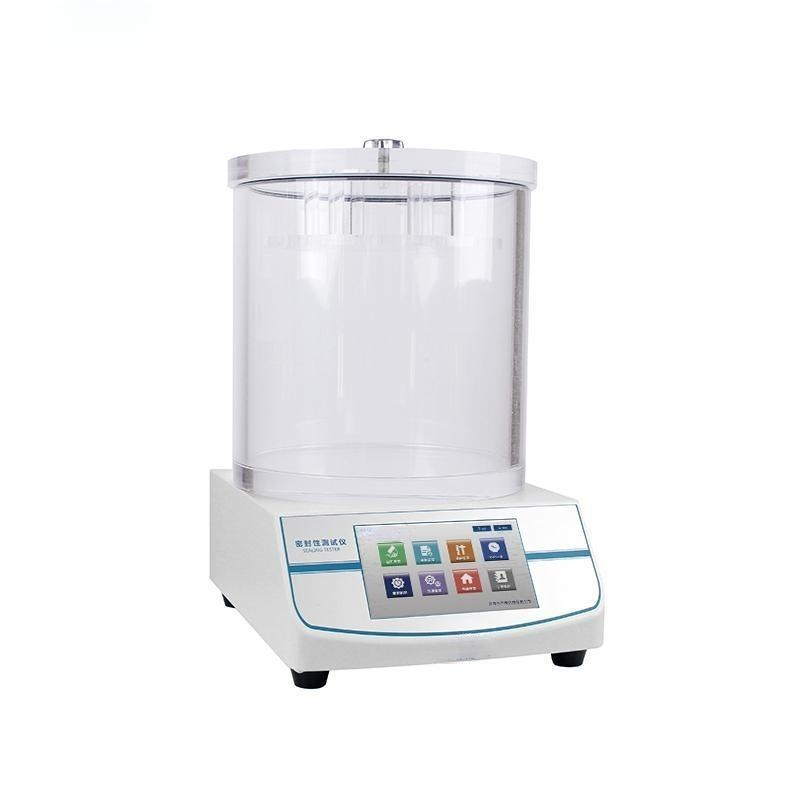

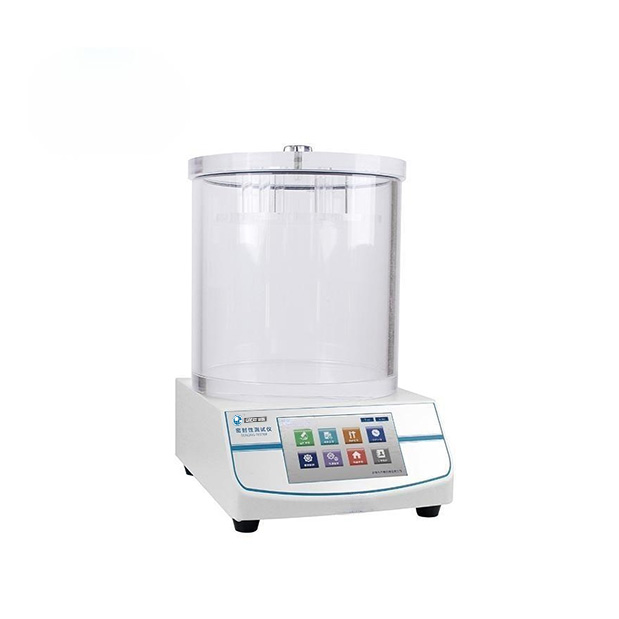

PYT-155 Condom Package Integrity Tester |
| vacuum degree | -90KPa~0KPa |
| accuracy | Level 0.5 |
| Effective size of the vacuum chamber | Φ270 mm 210 mm (H) (standard standard) |
| Φ360 mm 585 mm (H) (purchased) | |
| Φ460 mm 330 mm (H) (purchased) | |
| Note: Other sizes can be customizable | |
| bleed pressure | 0.7 MPa (provided by gas source user) |
| Gas source interface | Φ6 mm Polyurethane tube |
| outline dimension | 300 mm (L) × 380 mm (B) × 450 mm (H) |
| source | AC 220V 50Hz |
| net weight | 12 kg |
product configuration
| standard layout | Host, test tank |
| remarks | The gas source interface is Φ 6mm polyurethane tube. |
FAQ：
What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.
What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.
What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
