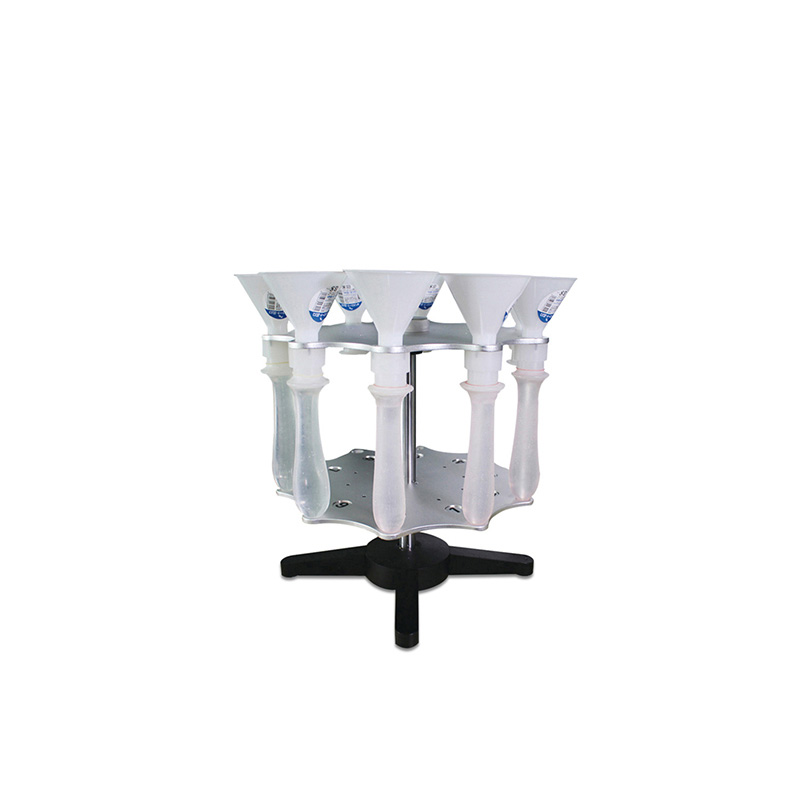

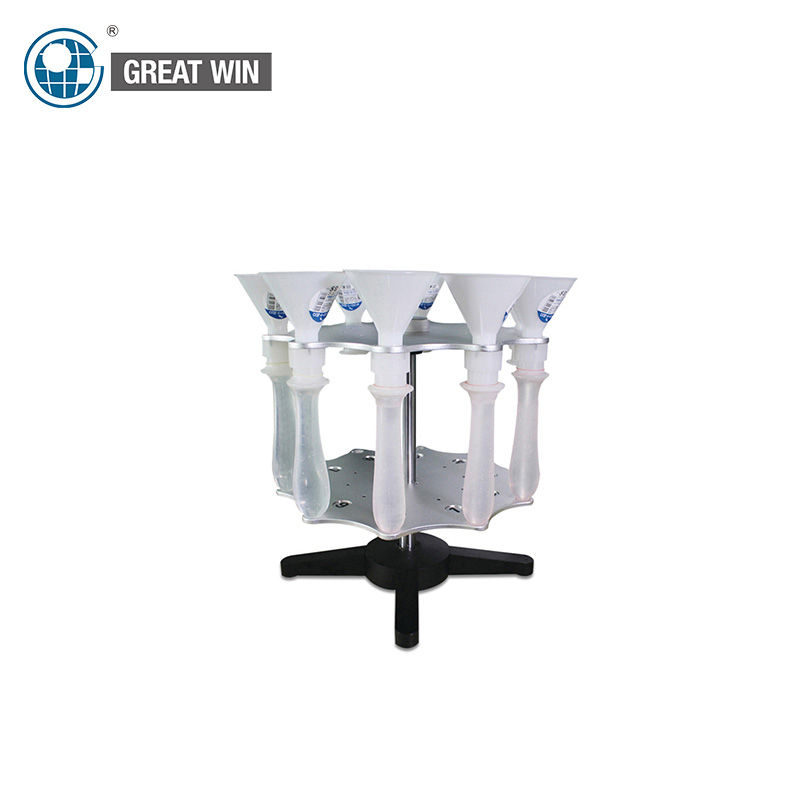

Brief introduction
Condom pinhole water leakage tester is applicable to the rubber sleeve and condom pinhole water leakage test, and meets the technical requirements and test methods of natural latex rubber condom (GB7544-2009). 10 station test space, can test multiple groups of samples at the same time, rotary test bench, convenient for observation and monitoring of different sample results, funnel-shaped filling port, more convenient for users to operate, customized clamping device to prevent leakage, avoid damage to the sample, and ensure the accuracy of the test.
Technical feature
- Ten station test space, can test multiple samples at the same time
- Rotary test table for facilitate observation and monitoring of different sample results
- Funnel type filling mouth, the user operation is more convenient
- Customized clamping device to avoid damage and damage the specimen to ensure the accuracy of the test
The test principle
With 300ml volume of water into the condoms, visually check the surface of the hanging condom leakage, then confirm no leakage, the condom on the colored suction paper, check the signs of condom leakage, the pinhole leakage test stand instrument production using 10 station design, each test station has a digital mark, can meet the groups of testing, uniaxial rotating table is convenient for customers to rotate view and clip samples.
Testing standard
The instrument meets the criteria: GB7544, ISO23409, ASTM D6324
Technical parameter
| project | PYT-146 Condom pinhole leak tester |
| application area | Condom, rubber gloves, drug testing institute, quality inspection institute |
| Test the number | 10 Station |
| outline dimension | 520mm x 500mm |
| weight | 20kg |
| standard layout | Host, measuring cup |
FAQ：
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.
What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
