Brief introduction

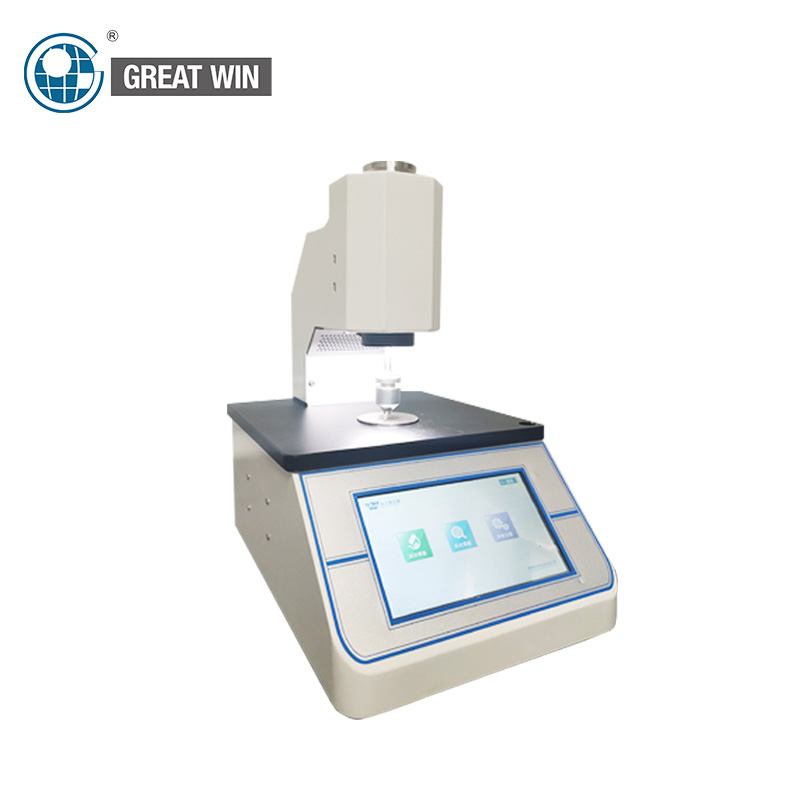

The condom thickness tester adopts the principle of mechanical contact measurement, and strictly measures according to standard methods, effectively ensuring the standardization and accuracy of the test. Professionally suitable for accurate measurement of the thickness of various materials such as plastic films, sheets, diaphragms, paper, foils, silicon wafers within the range.
Professional technology
- Contact area and measured pressure in strict accordance with the standard design
- During the test, the measuring head automatically rises and falls, effectively avoiding the systematic error caused by human factors
- Support for automatic and manual two measurement modes, convenient for users to choose freely
- Display the analysis data such as the maximum, minimum, mean and standard deviation of the measurement results in real time for users to judge
- Configure standard quantity blocks for system calibration to ensure test accuracy and data consistency
- The system supports many practical functions such as real-time data display, automatic statistics and printing to obtain test results
- The system is controlled by microcomputer, equipped with LCD display, menu interface and PVC operation panel, which is convenient for users to conduct test operation and data view
- Standard USB interface for easy external connection and data between the system and the computer
Testing standard
The instrument meets several national and international standards:
GB 7544-2019 Natural latex rubber condom;
ISO 4074:2015 International Standard, etc.; suitable for condom thickness test.
YY T1567-2017 Technical requirements and test methods for female condoms.
Testing Principle
The condom thickness tester adopts the principle of mechanical contact measurement to cut off a certain size of the pattern; through the control panel button, adjust the measuring head to fall on the pattern; measure the thickness of the material based on the pressure generated by two contact surfaces and the value measured by two contact areas through the sensor.
Qualification
| model
project |
PYT-148 Condom Thickness tester |
| test specification | 0~3mm (conventional) |
| resolution ratio | 0.1μm |
| Measure head diameter | φ3~10mm |
| gaging pressure | Contact pressure (22 ± 5) kpa |
| certainty of measurement | ±1μm |
| source | AC 220V 50Hz |
| outline dimension | 461mm(L)×334mm (W)×357mm (H) |
| net weight | 32 kg |
Product configuration
| standard layout | Main machine, micro-printer |
FAQ：
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.
What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.
What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
