Professional technology

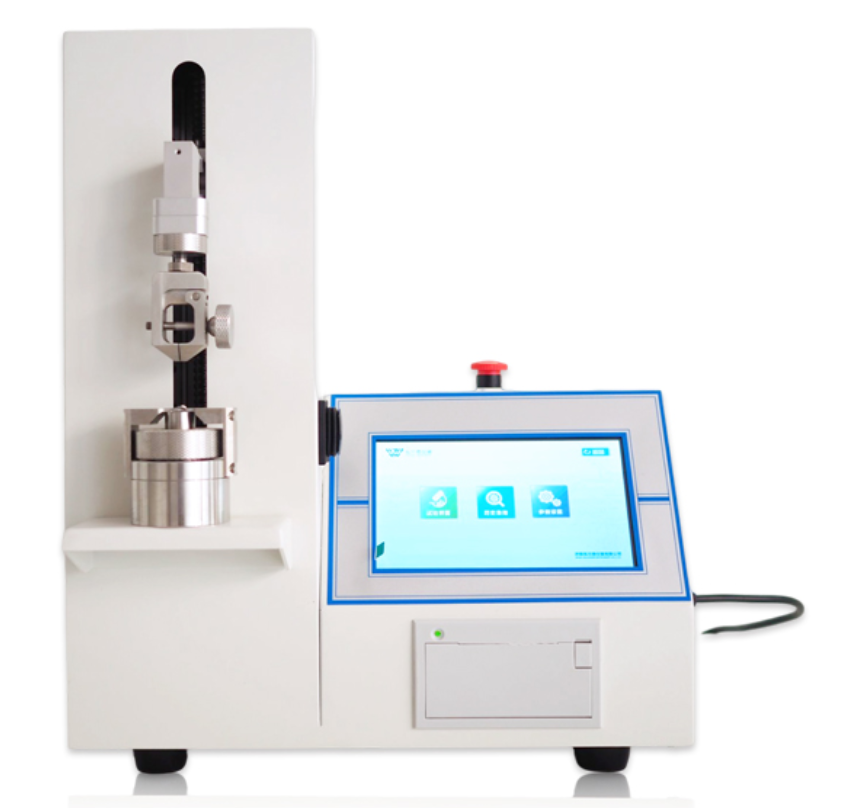

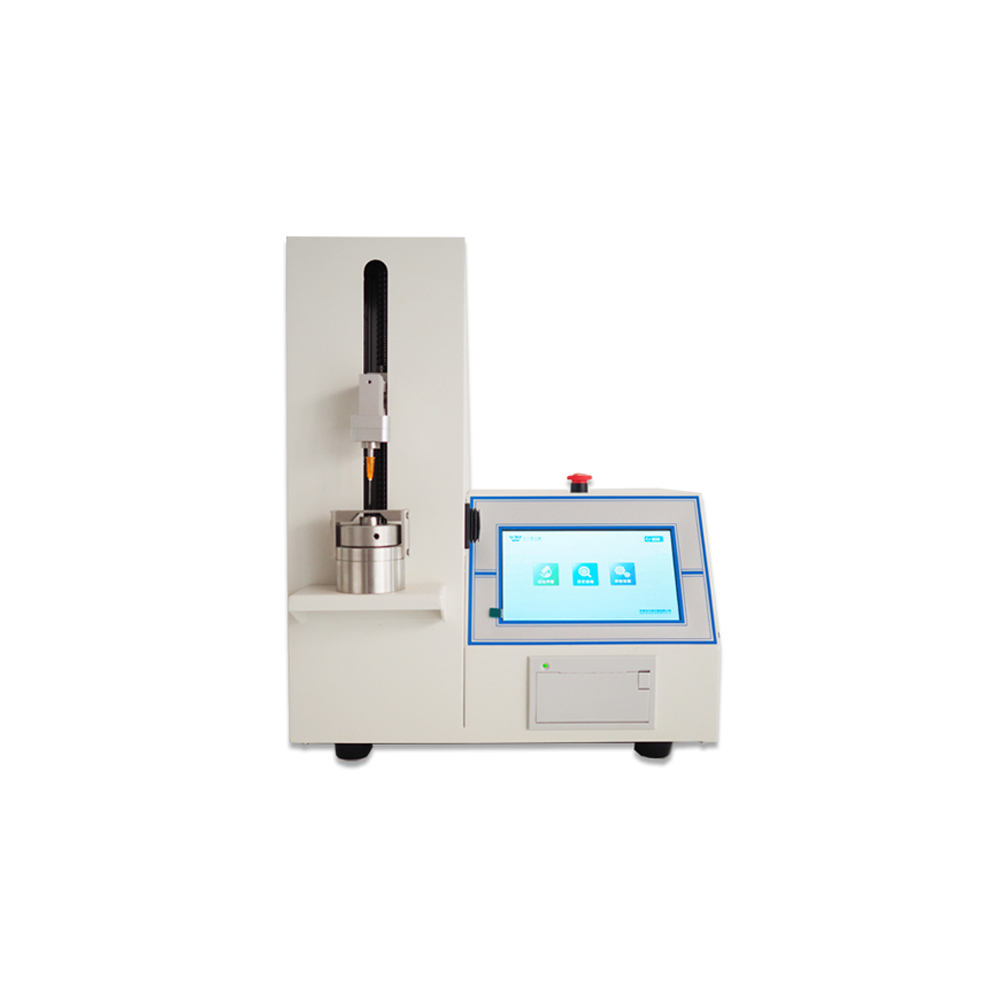

- The tester uses a 7-inch professional color touch screen and a Chinese menu display.
- The date time can be set, and the calibration interface can calibrthe sensor force value.
- Print test data onboard, and the test record can be saved by exporting EXCEL form through U disk.
- Real-time display of piercing force and peak force data, can show the maximum piercing force.
The test principle

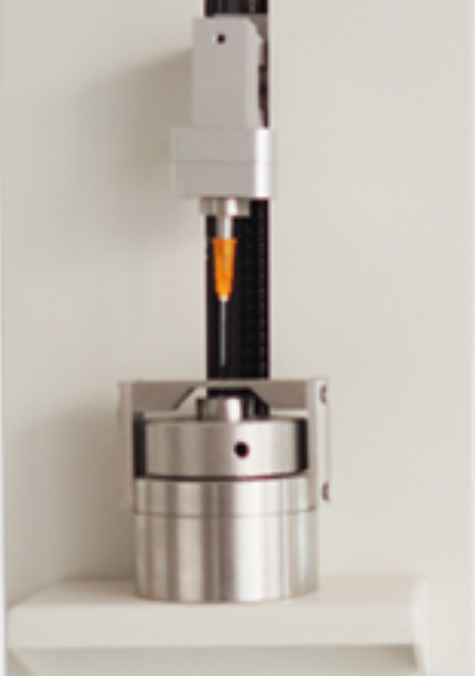

The sample is clamped between the two clamps of the clamp, and the two clamps make relative motion. The needle piercing force tester collects the force value change and displacement change in the experimental process through the force value sensor on the clamp and the displacement sensor built in the machine, and calculates the various mechanical function indexes of the sample.
Testing standard
The instrument is compliant with ISO 7864-2016, GB15811-2016.
Test application
| Basic application | Suitable for puncture force performance determination of various injection needles. |
| extensive application | Rubber plug puncture force |
Qualification
| metric | parameter |
| tube wall | Normal wall, thin wall, ultra-thin wall three optional |
| Nominal specifications | 0.2~5.0mm |
| test specification | 0~10N |
| Test accuracy | ± 0.5%FS (full range) |
| Test speed | 5~1000mm / min arbitrarily set |
| Simulated skin | Polyurethane membrane material |
| rint way | For 0~99 times of any setting, you can print the test data and the average puncture force and deviation value |
| outline dimension | 400mm (L)×270mm (W)×360mm(H) |
| net weight | 21kg |
Product configuration
| standard layout | Host, fixture, printing paper, instructions |
| Choose a piece | Multi-in-one upgrade function (sliding, rigidity, suture needle piercing force, blade sharpness and fixture) |
FAQ：
What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.
What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
