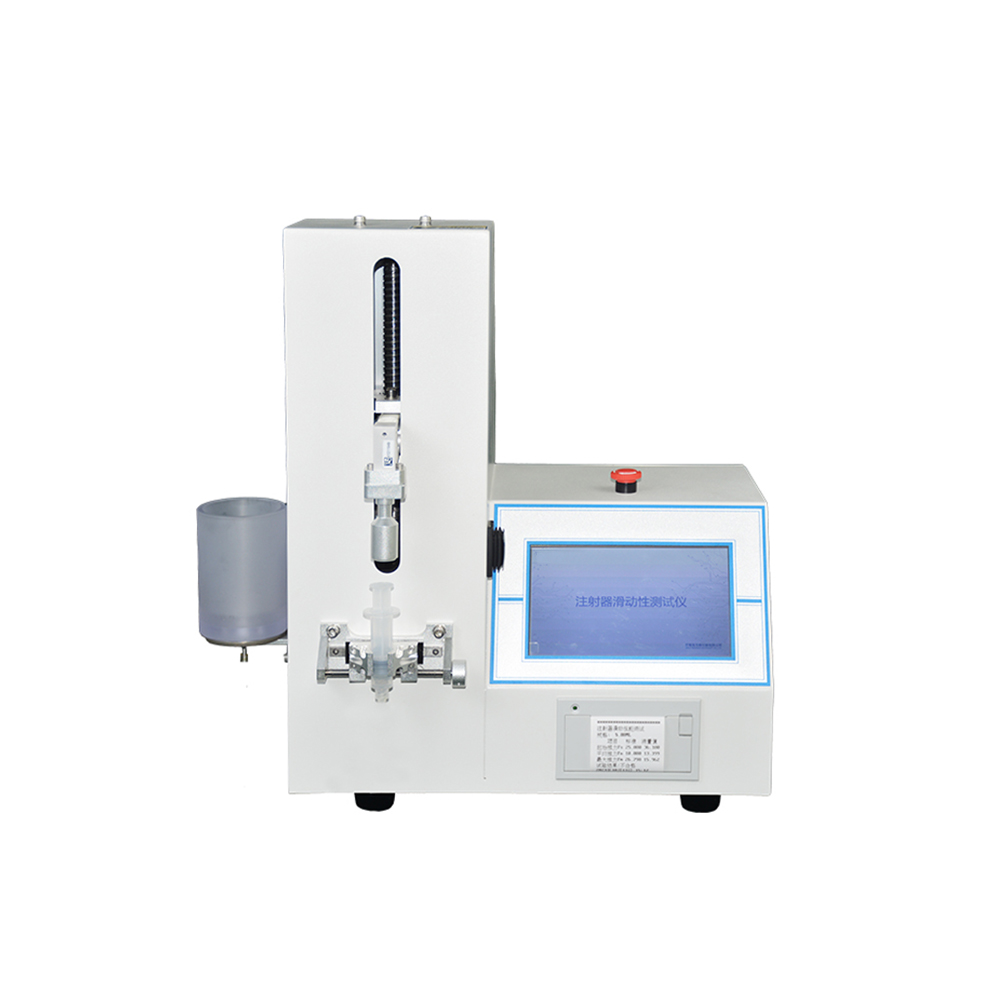

Professional technology
- The tester uses a 7-inch professional color touch screen;
- Chinese menu display: real-time display of the starting force, average force, push back maximum force, push back minimum force and core force movement and record diagram;
- The nominal capacity of the syringe is selected by the intelligent controller to automatically judge the test results, and the test results are printed by the airborne printer.
The test principle
Fixed the body of the syringe, apply a force to one end of the rod, and test the test tension and test thrust of the rod and the syringe body at a certain speed.
Testing standard
The instrument is in accordance with GB 15810-2019, ISO 7886-1, ISO8537-2016, YY / T0962-2021, YY0497-2018, etc.
Test application
| Basic application | Suitable for the sliding performance determination of various syringes. |
Qualification
| metric | parameter |
| Force value ange | 0N~ 100N |
| accuracy | Error full value ± 1% |
| test speed | 5~ 1 000mm/min |
| Maximum capacity | 0.1 mL ~ 100 mL arbitrarily selection |
| proving time | 30 ± 1s (waiting time from end of tension test to start of thrust test) |
| outline dimension | 400mm(L)×290mm(W)×275mm(H) |
| net weight | 15kg |
Product configuration
| standard layout | Host, fixture, printing paper, instructions |
FAQ：
What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.
What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
