Professional technology

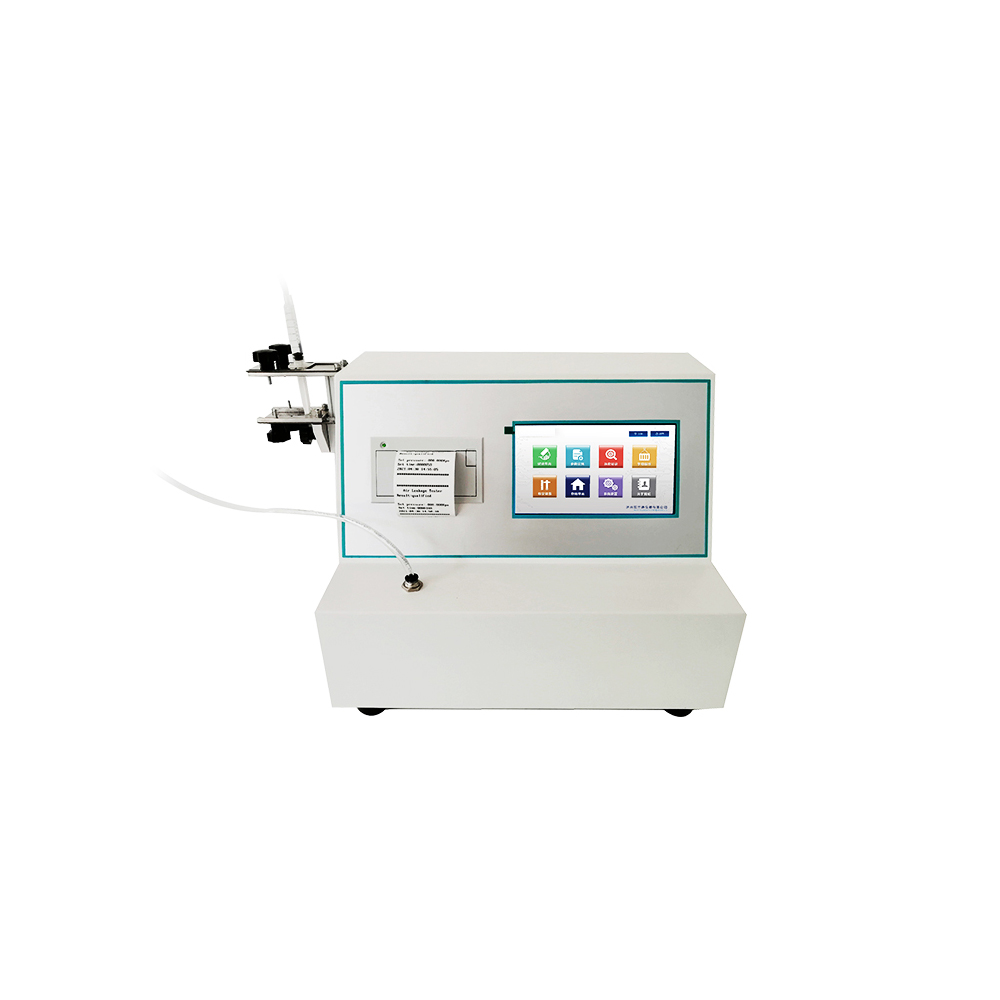

- The tester uses a 7-inch professional color touch screen;
- Set the program by the PLC programmable controller, automatic test, with a printer;
- Chinese menu display: real-time display of various parameters;
- The negative pressure of the measurement system is kept unchanged for 1 minute, and the test results are printed by the airborne printer.
The test principle
The syringe into not less than 25% of the nominal capacity, Is the cone head up, Back to draw the piston, Is to overlap the reference line with the nominal capacity line, And then placed on a syringe holder, Firmly attach the tube on the tester negative pressure output to the cone head of the syringe, Connect the tester to the network, Turn on the power switch, After the negative pressure is stabilized, Then press the start button, The tester will automatically suck up the air, To the negative pressure display number when expressed to 88 KPa, Automatic stop of suction air, At the same time at the beginning, Maintenance time of 60S, in the meantime, Visual observation that the contact site with the piston shall not produce bubble phenomenon (the negative pressure display number should not exceed the original display value of 0.5 KPa), And the piston and the core rod shall not be detached.
Testing standard
The instrument is in accordance with GB15810-2019, ISO 7886-1, ISO8537-2016, YY0497-2018, etc.
Test application
| Basic application | Suitable for various syringe body tightness performance determination. |
Qualification
| metric | parameter |
| egative pressure output | -88Kpa±0.3Kpa |
| Scope of detection | -5 Kpa ~ -90 Kpa is tunable |
| testing time | 1S~9999S arbitrary set, the error is not greater than 0.1 seconds |
| source | AC220V，50Hz |
| The power of the machine | 60W |
| outline dimension | 400mm(L)×290mm(W)×240mm(H) |
| net weight | 8.5kg |
Product configuration
| standard layout | Host, fixture, printing paper, instructions |
l
FAQ：
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
