Standard for：
ISO80369-3:2016; ISO80369-6:2016 ; ISO80369-7:2021
Technical Specifications：
Nominal Capacity : 1mL~60mL, optional
Axial Force : 0~200N, error≤±0.5%
Separating Force : 20N~60N, error≤±1%
Internal Water Pressure : 200kPa~400kPa, error≤±0.5%
Torque : 0.01N•m~5.0N•m, error≤±0.5%
Hold Time : 1~3200s, optional, error≤±0.1s
Test Environment Temperature:10~35℃, humidity:20~80%
Power : 220V/50Hz
Weight : 40kg
Attached accessories:
1 Main frame

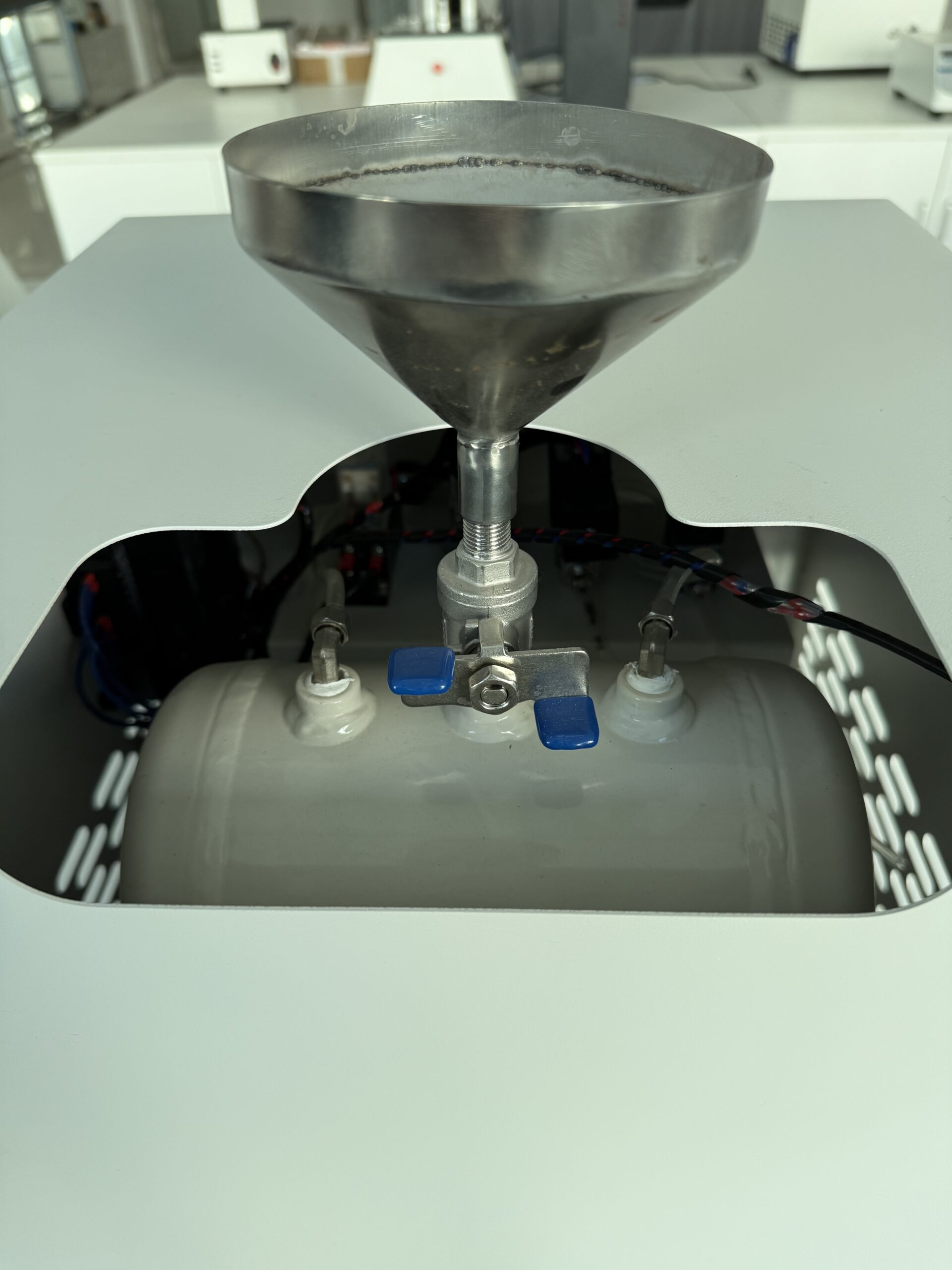

1 Air pressure module
1 Water pressure module
10 Rolls of printing paper
2 pcs Power cord
2 pcs φ6mm air tube
1 set Connector*
16 extra matching connectors.
